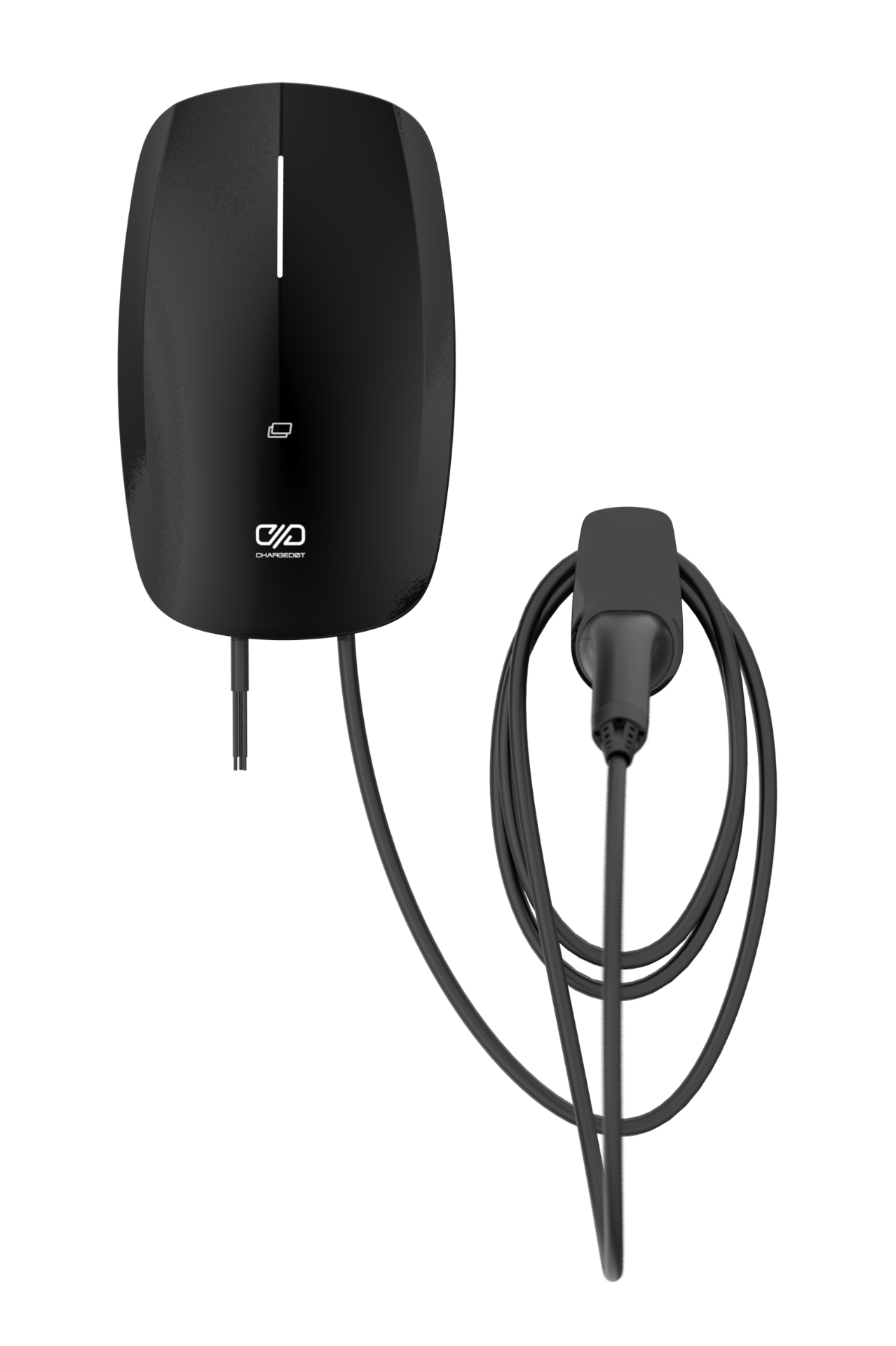

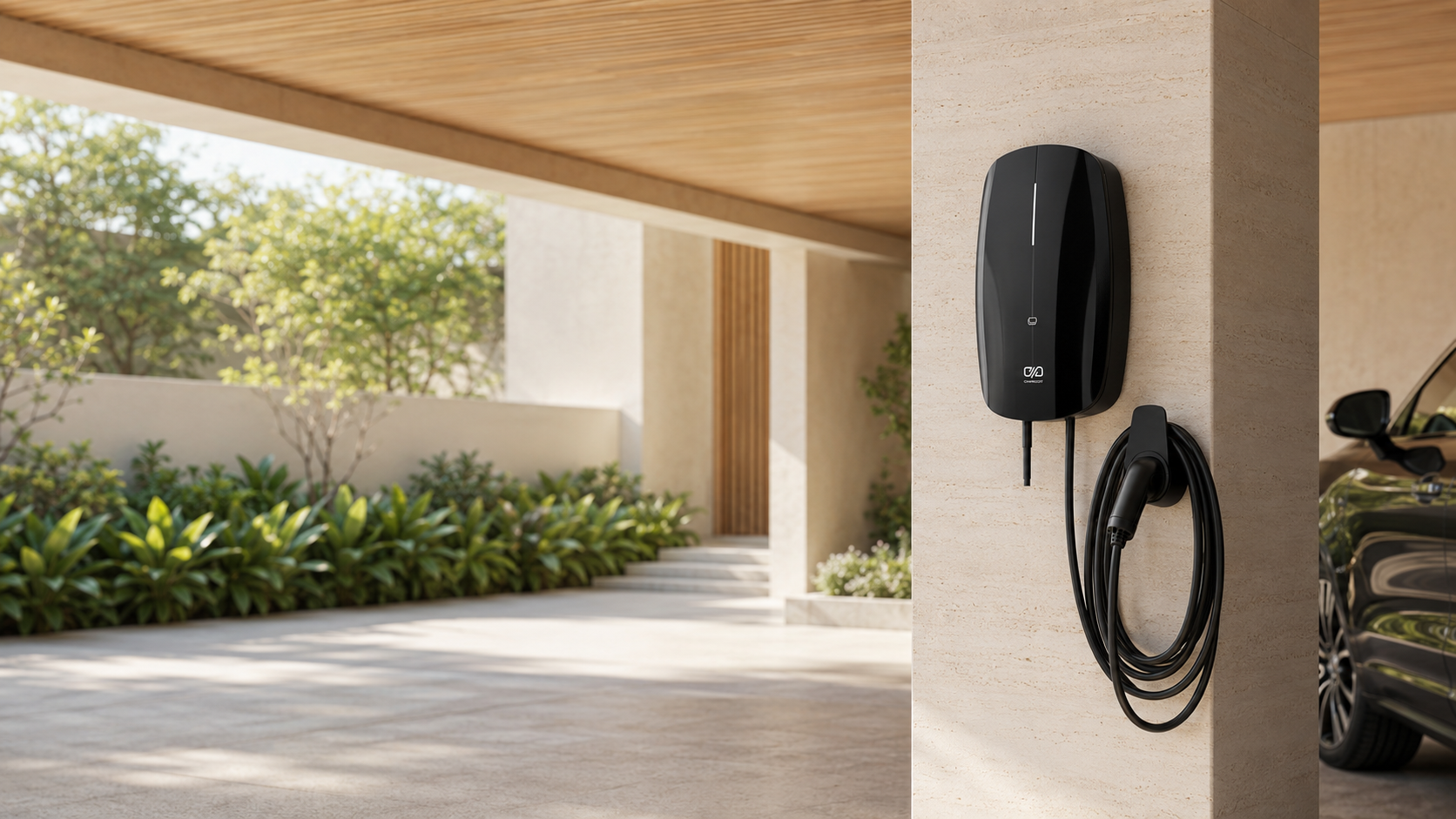

OBSIDIAN
Smart charging for modern homes.

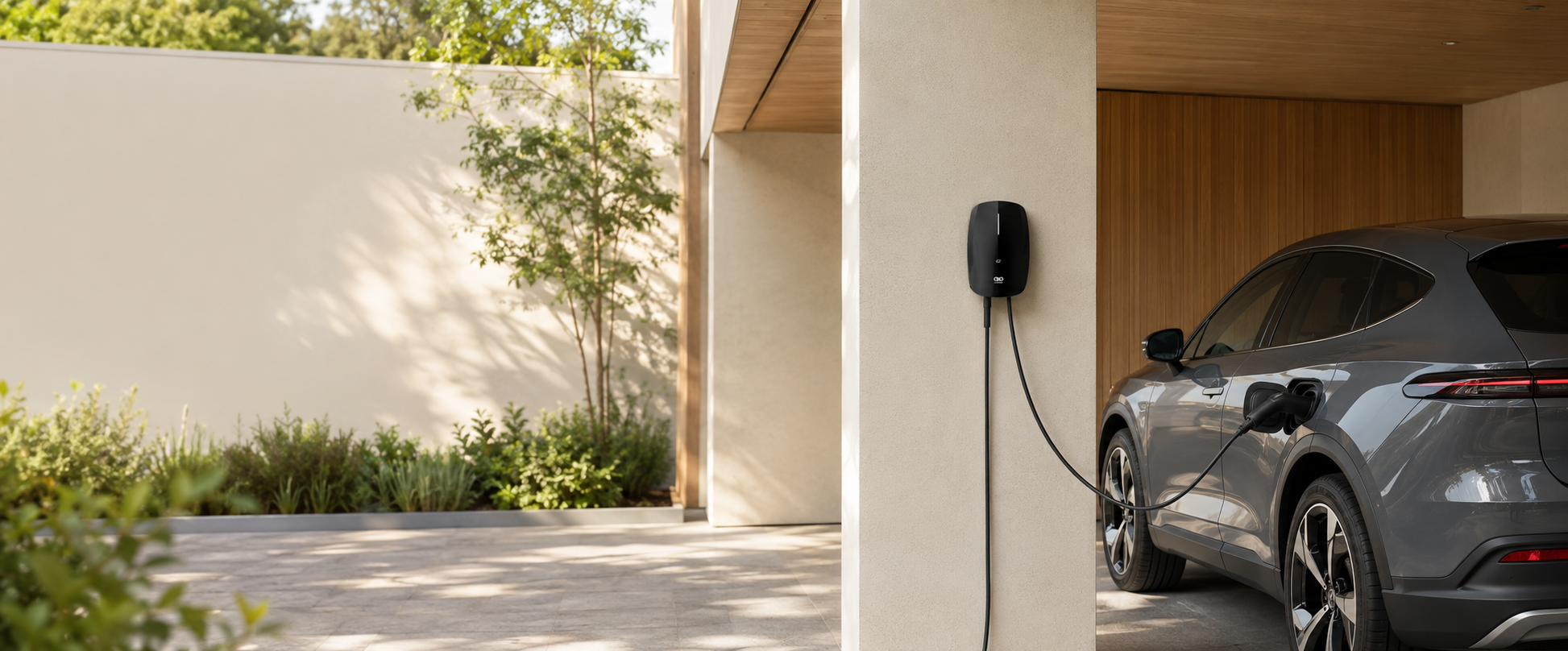

Designed with Style
Modern design that complements the home environment.
Bottom-Entry Daisy Chain
Connect multiple chargers in a clean row with a single floor-level feed — perfect for driveway banks and multi-bay residential setups.
Seamless Connectivity and Control
Manage and optimize charging remotely with Wi-Fi, bluetooth, and app integration.
Designed with installers in mind
Fewer installation steps means an easier, quicker installation process.
Enhanced Safety
Multiple layers of electrical protection for enhanced safety. Constructed with flame-retardant and fire-resistant materials, with built in RCD, surge protection and ground monitoring. Emergency-stop option available for added safety.
Built for Harsh Conditions
Extensively tested and certified to endure harsh environments of temperatures between -30°C to +50°C, with IP55 dust and water protection and IK10 impact resistance.
Built from
the inside out.
Three layers of engineering that make the Obsidian-CE quietly relentless.

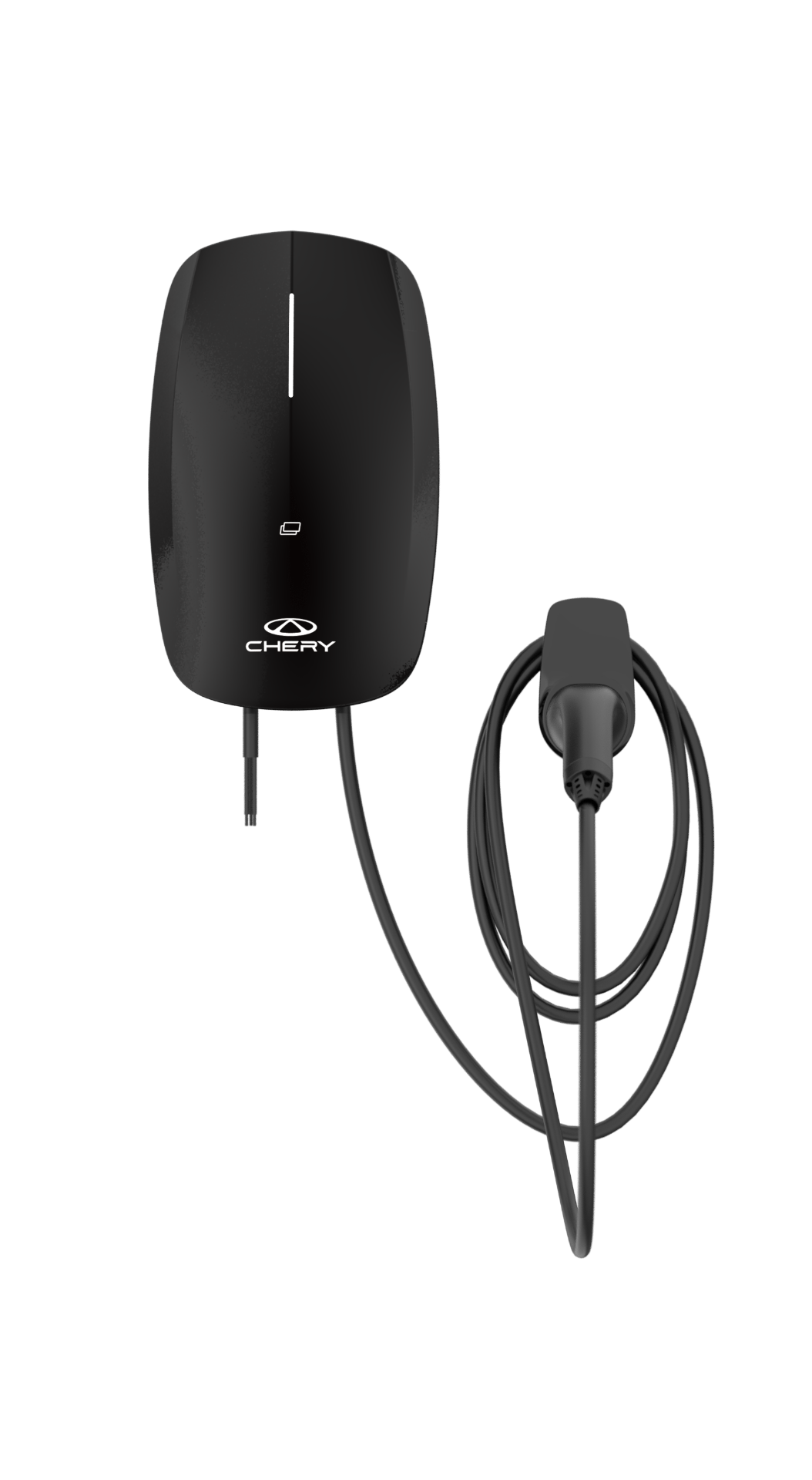

Engineered
Architecture.
A compact interior layout optimized for maximum heat dissipation and long-term electrical stability.

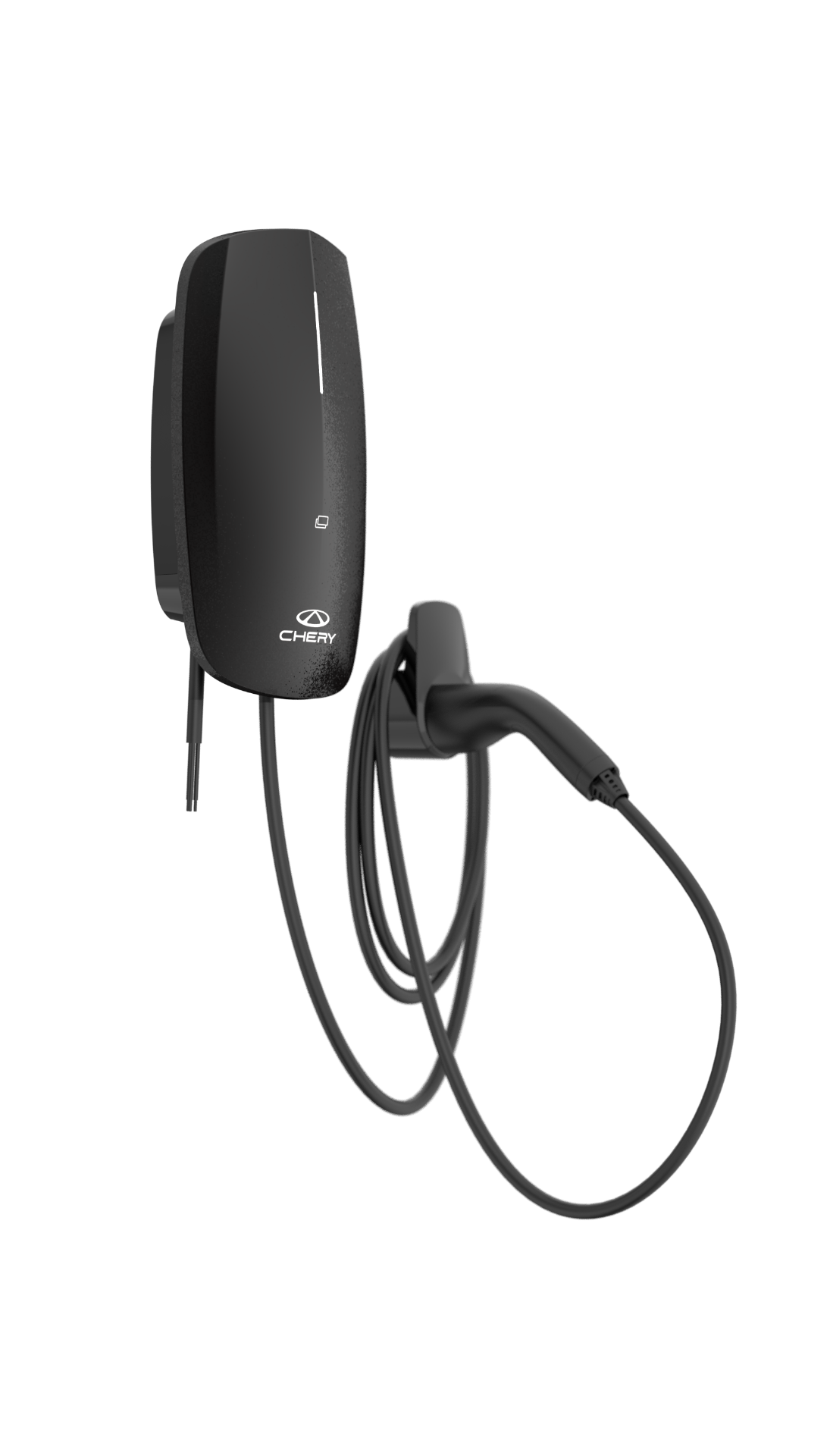

Seamless
Intelligence.
Dual-band internal antennas paired with smart circuitry handle high-density load management effortlessly.

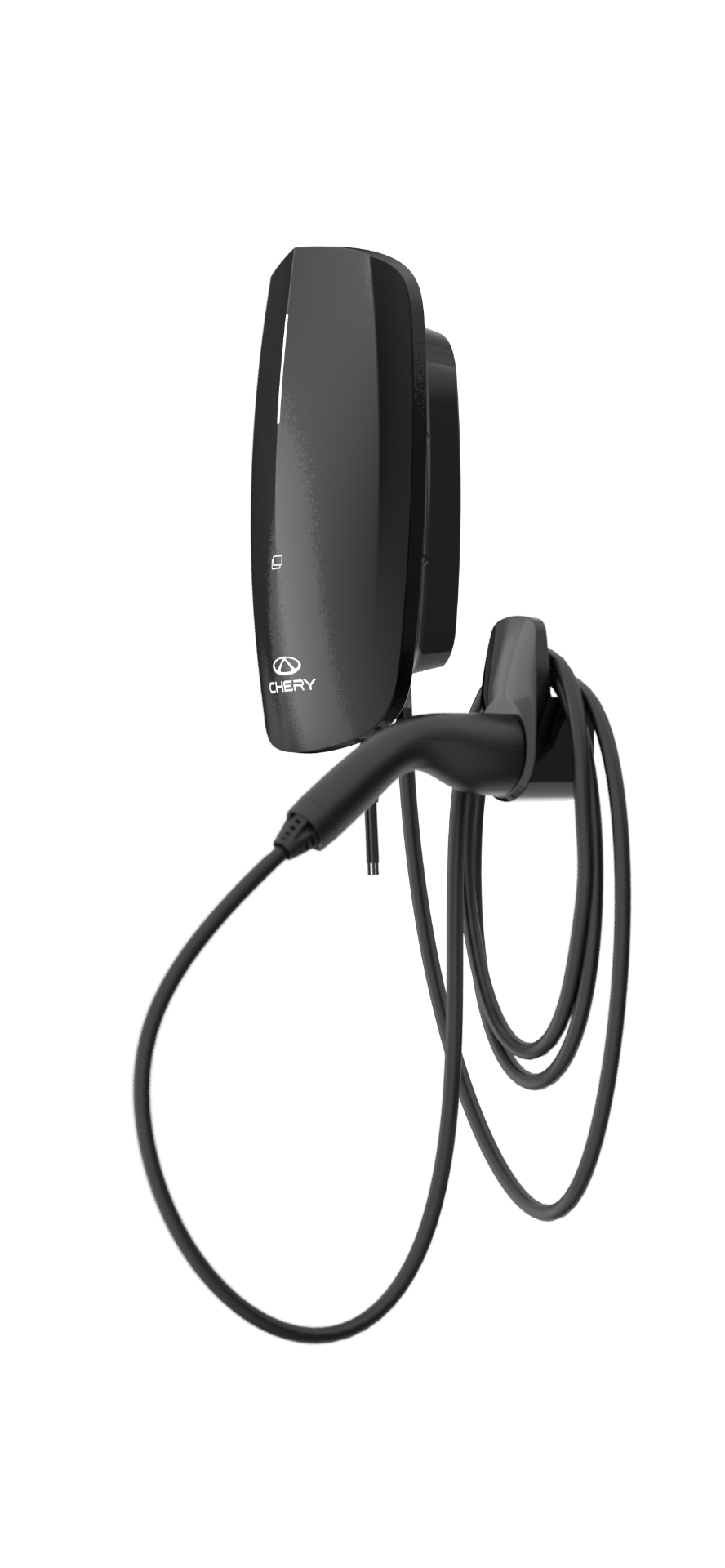

Robust
Protection.
High-grade impact resistant housing built to withstand severe environmental weather and extreme temperatures.
Engineered
Architecture.
A compact interior layout optimized for maximum heat dissipation and long-term electrical stability.
Seamless
Intelligence.
Dual-band internal antennas paired with smart circuitry handle high-density load management effortlessly.
Robust
Protection.
High-grade impact resistant housing built to withstand severe environmental weather and extreme temperatures.
Which AC charger is
right for you?
MaxiCharger AC Pro
Currently viewing
AC Elite 12 KW (Home)
Learn more ›
AC Ultra
Learn more ›Easy authentication,
complete control.
Obsidian CE supports RFID authentication for secure access. Two RFID cards are included with every charger.
- RFID ISO/IEC 14443A, MIFARE™ Classic
- RFID cards (2 included)
- Seamless user experience
Download Product Datasheet
Get the complete technical details, specifications, dimensions, and more in the Obsidian CE Datasheet.
Technical specifications
Input / Output
- Power Rating & Current
- 7kW / 32A (Single Phase) 22kW / 32A (Three Phase)
- Input / Output Voltage
- 230V AC, 50/60Hz 400V AC, 50/60Hz
- Network Type
- TT, TN-C, TN-S, TN-C-S
- Charging Cable Length
- 5m (7.5m option available)
- Input Power Cable Length
- 0.8m
Protection
- Over / Under Voltage Protection
- ✓
- Surge Protection
- ✓
- Short Circuit Protection
- ✓
- Leakage Detection
- ✓
- Over Current Protection
- ✓
- Over Temperature Protection
- ✓
- Emergency Stop Button
- Optional
Connectivity & Interface
- Bluetooth
- BLE 5.0
- WiFi
- 2.4GHz
- User Interface
- ChargerSync™ App / Customization by OEMs
- Status Indication
- Multicolor LED
- User Authentication
- RFID ISO/IEC 14443A, MIFARE™ Classic
General
- IP Rating
- IP55
- IK Rating
- IK10
- Operating Temperature
- −30°C ~ +50°C
- Storage Temperature
- −40°C ~ +65°C
- Operation Altitude
- 2000m
- Mounting
- Wall Mount / Pedestal
- Dimension (H×W×D)
- 412.6 × 252 × 122.4 mm
- Standards
- IEC61851-21-2, IEC62196-1/2
- Certifications
- CE, CB
- Warranty Period
- 30 months from manufacturing date
