C1
Seamless charging for your everyday journey
Enhanced Data Security and Interoperability
Integrates securely with energy management systems, OCPP backends, and third-party systems with certified communication standards.
ISO 15118-2
ISO 15118-20
Stay connected
Full connectivity stack supports Modbus RTU/TCP, RS-485, ethernet, 4G, LTE, WiFi and Bluetooth 5.0. Dual uplink supports uninterrupted use by enabling connectivity to two backend systems.
Fit for Purpose
Choose the options specific to your needs.

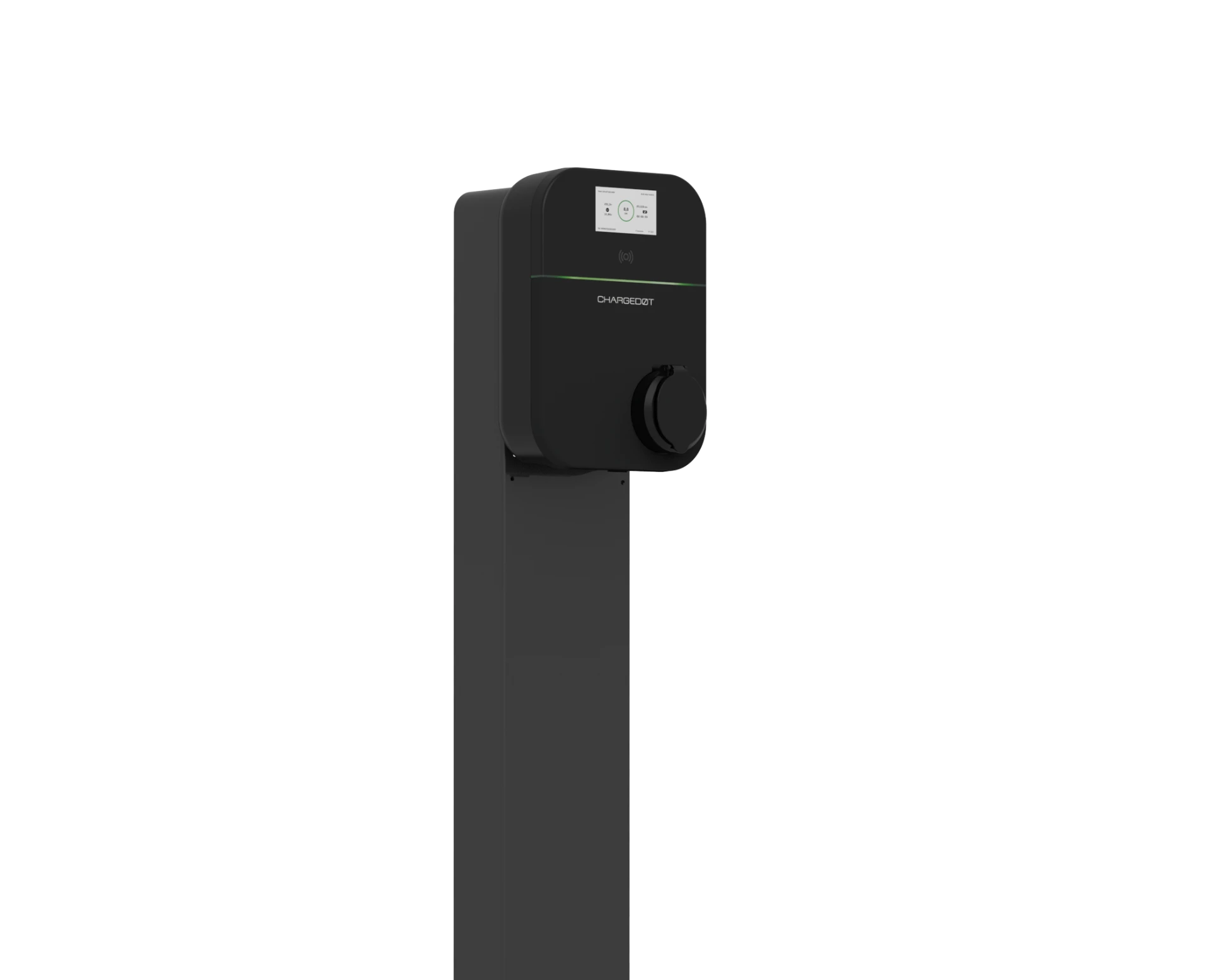

Cable Connection & Mount Options

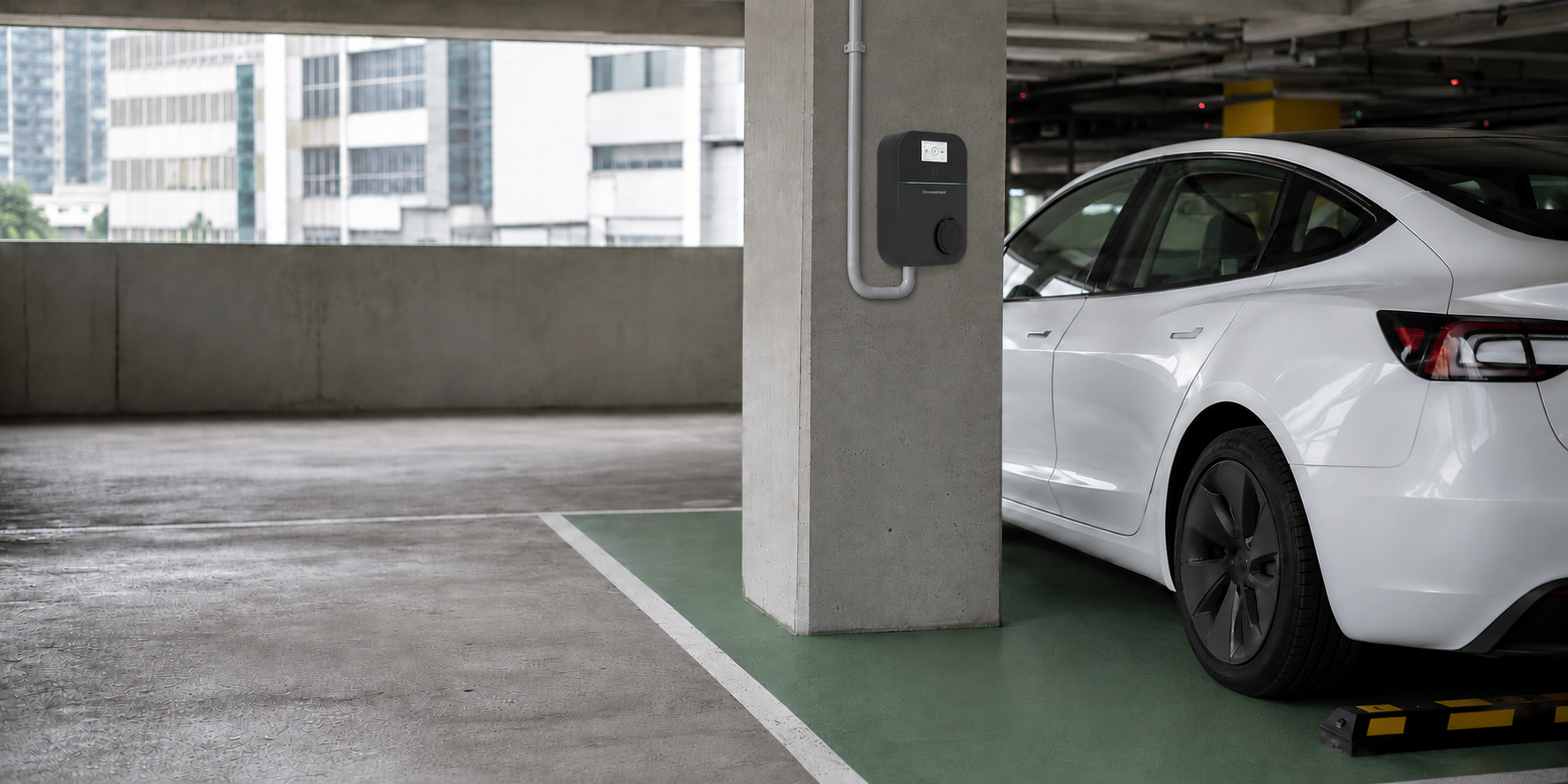

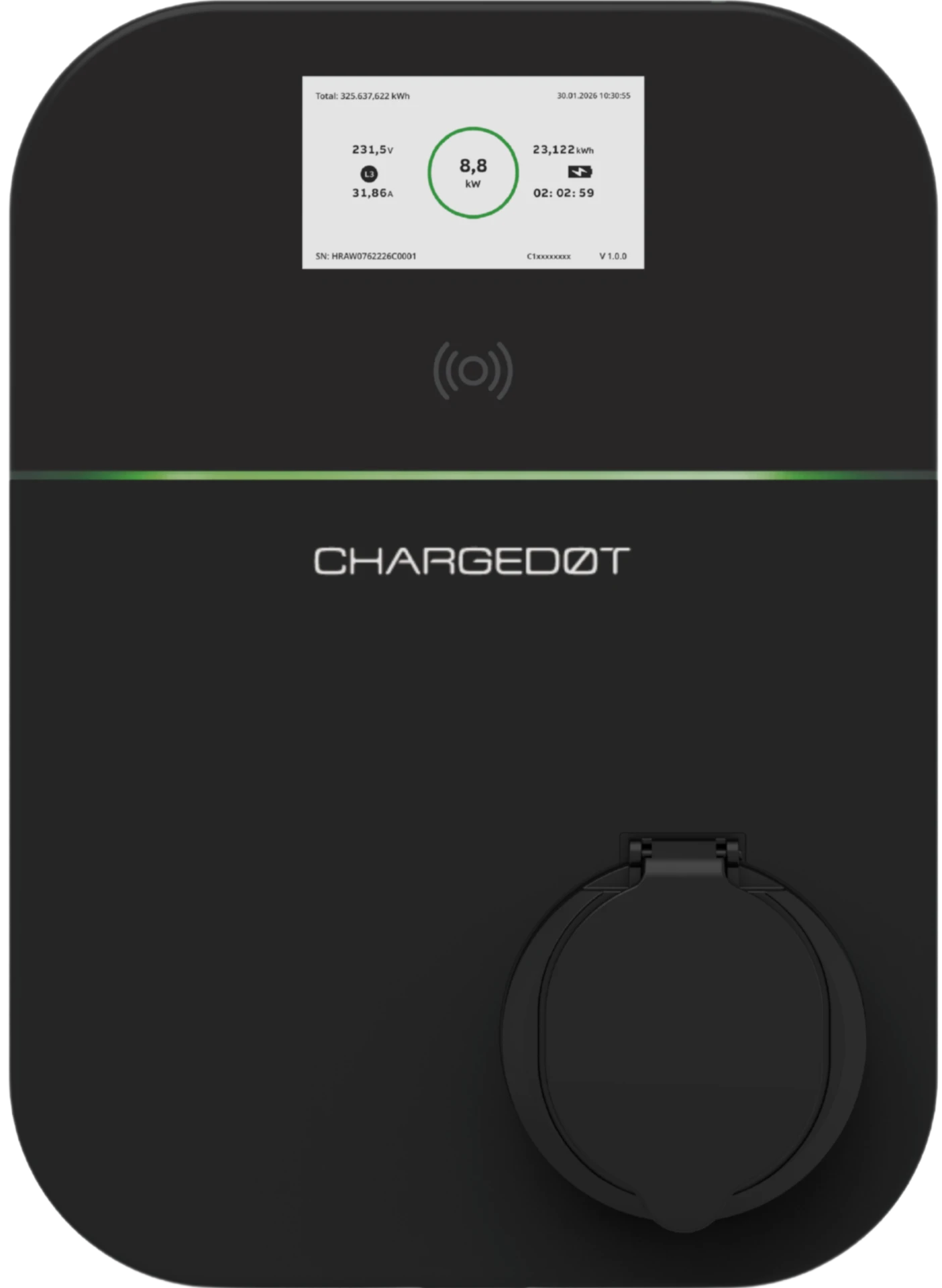

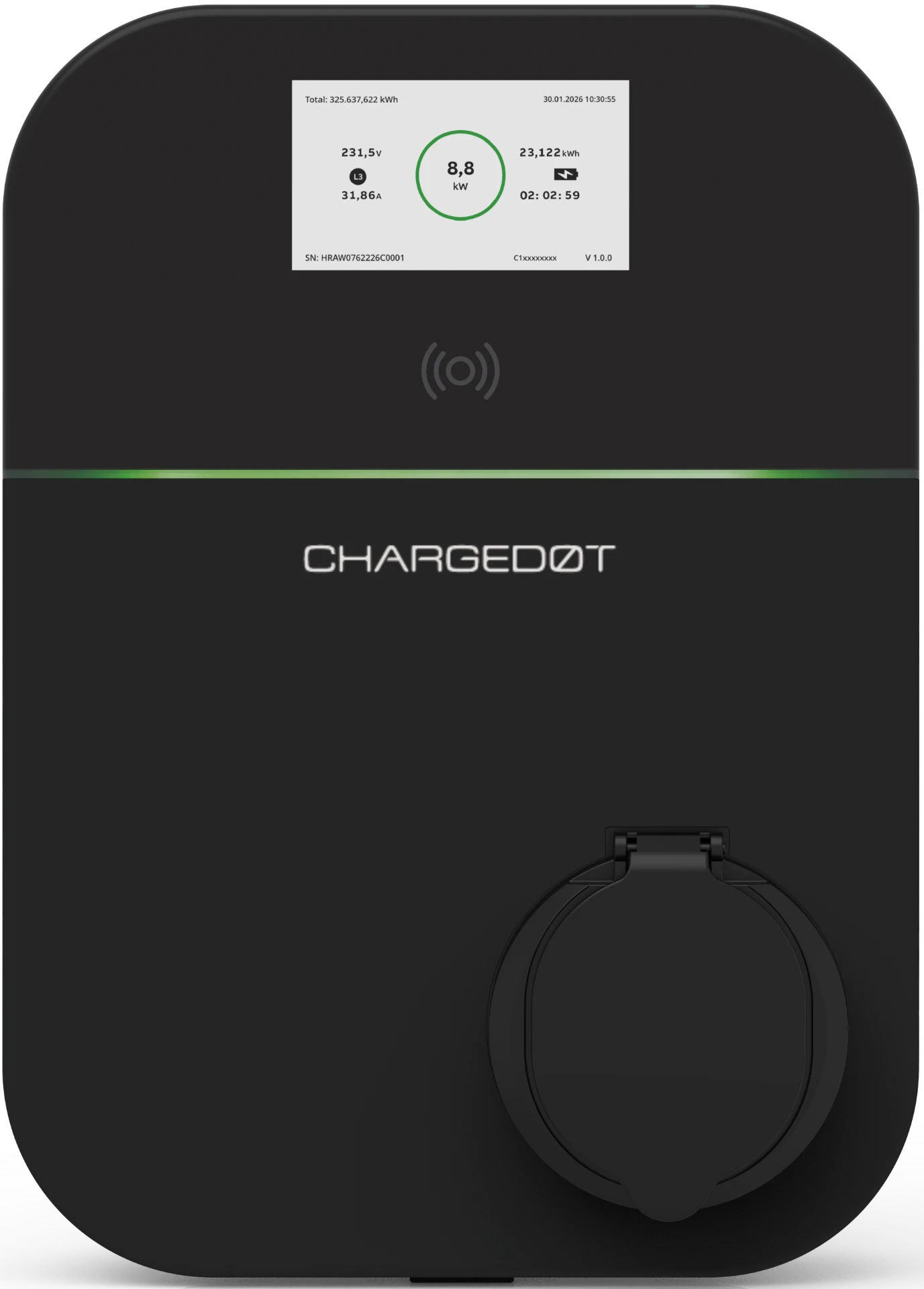

Choose between the tethered cable type for convenient use, and the socket version with optional shutters for added safety. With different entry points, C1 can also be mounted on both walls and pedestals.

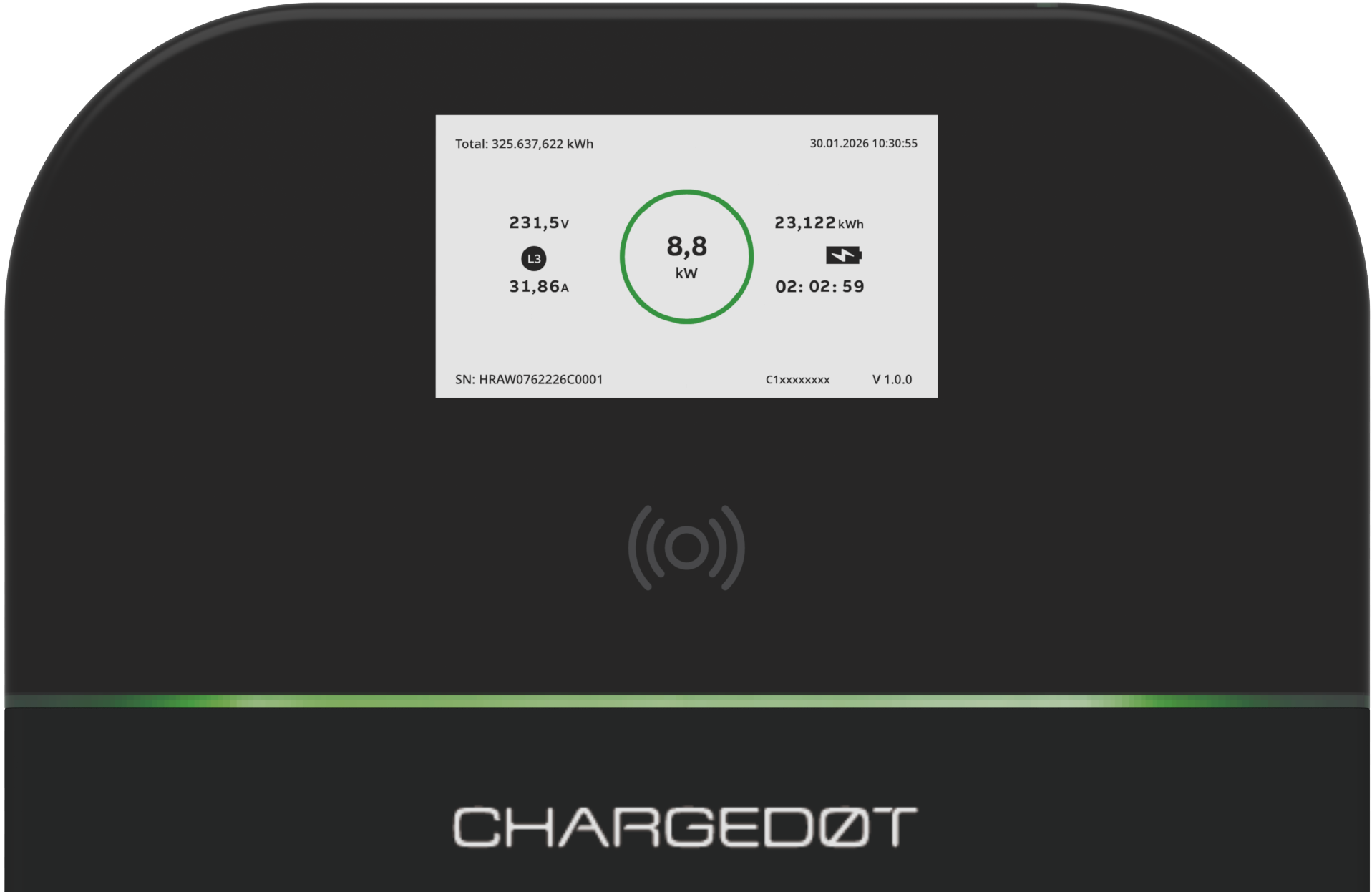

Metering Accuracy
Choose MID or Eichrecht-certified variants to meet your required standard of reporting.

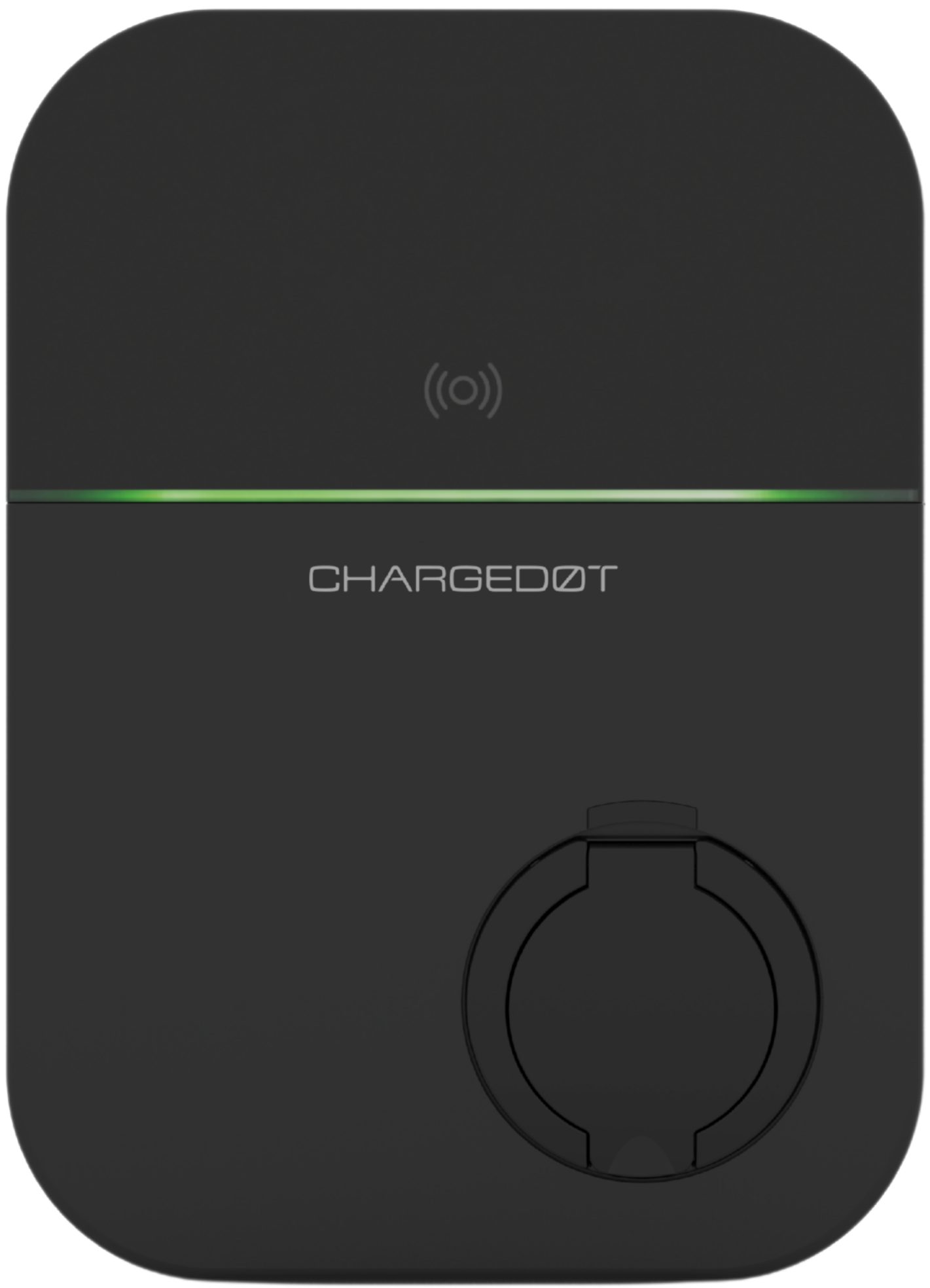

Go Lite
C1’s Lite variants meet the needs of standard private home use. At 7kW, they come without the compliance costs that are required for commercial reporting.

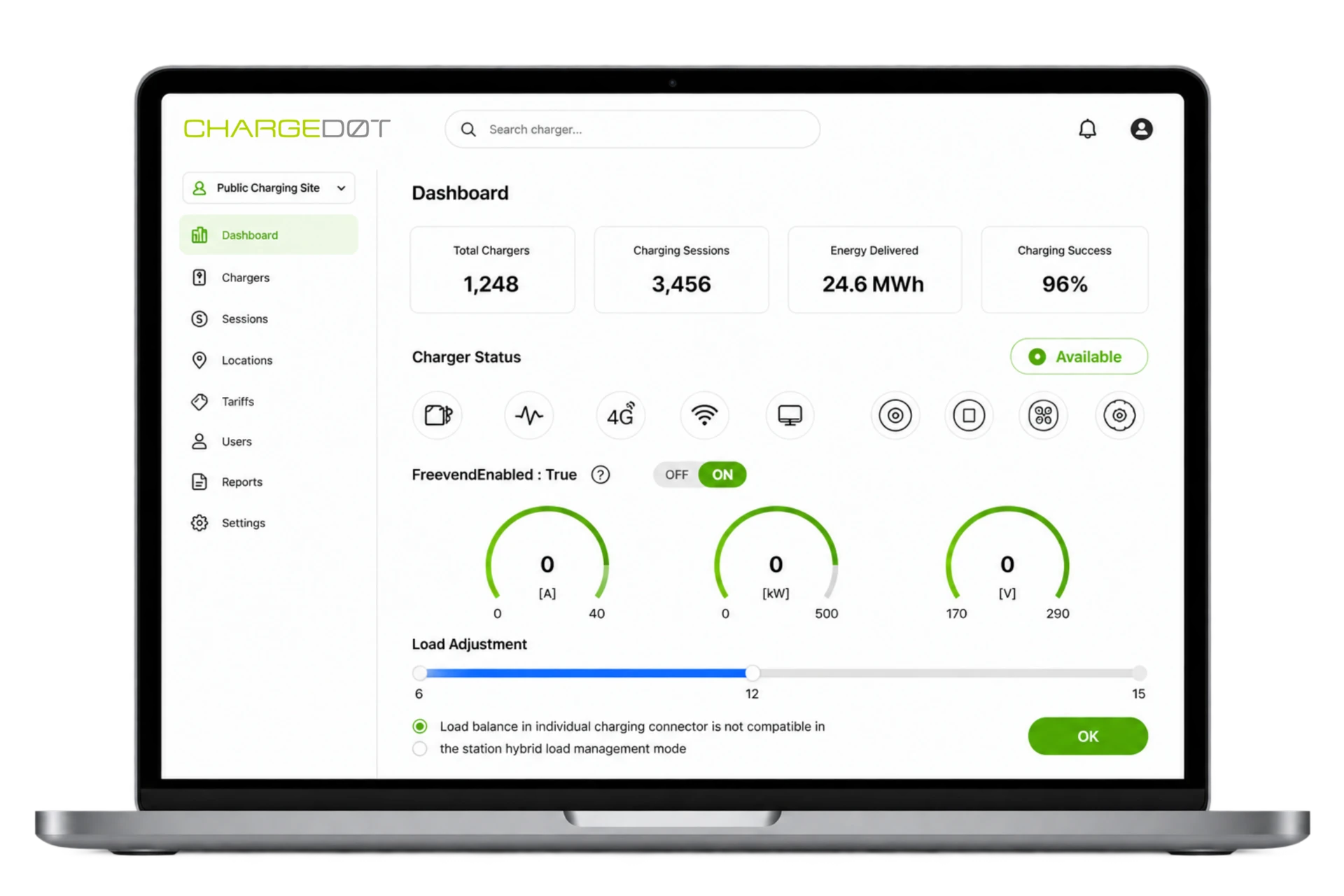

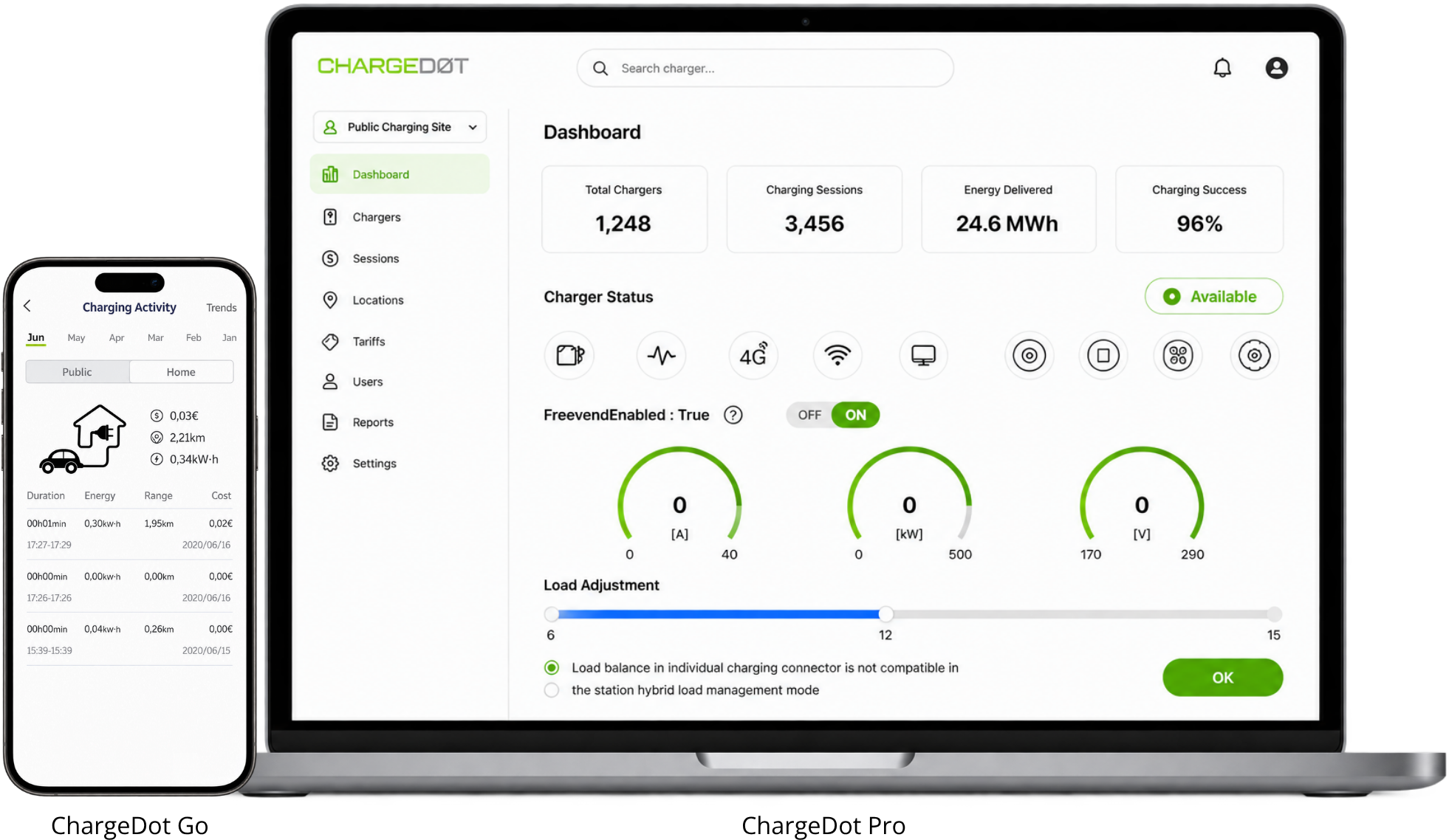

Manage your charging network with ChargeDot Pro
Dynamic load management enables more vehicles to charge simultaneously without overloading capacity, and manage peak demand to control electricity costs.
Manage charging timings across all locations to maximize time and cost efficiency.
Set up site and user groups, and assign access rights to different users, set charging fees and more.

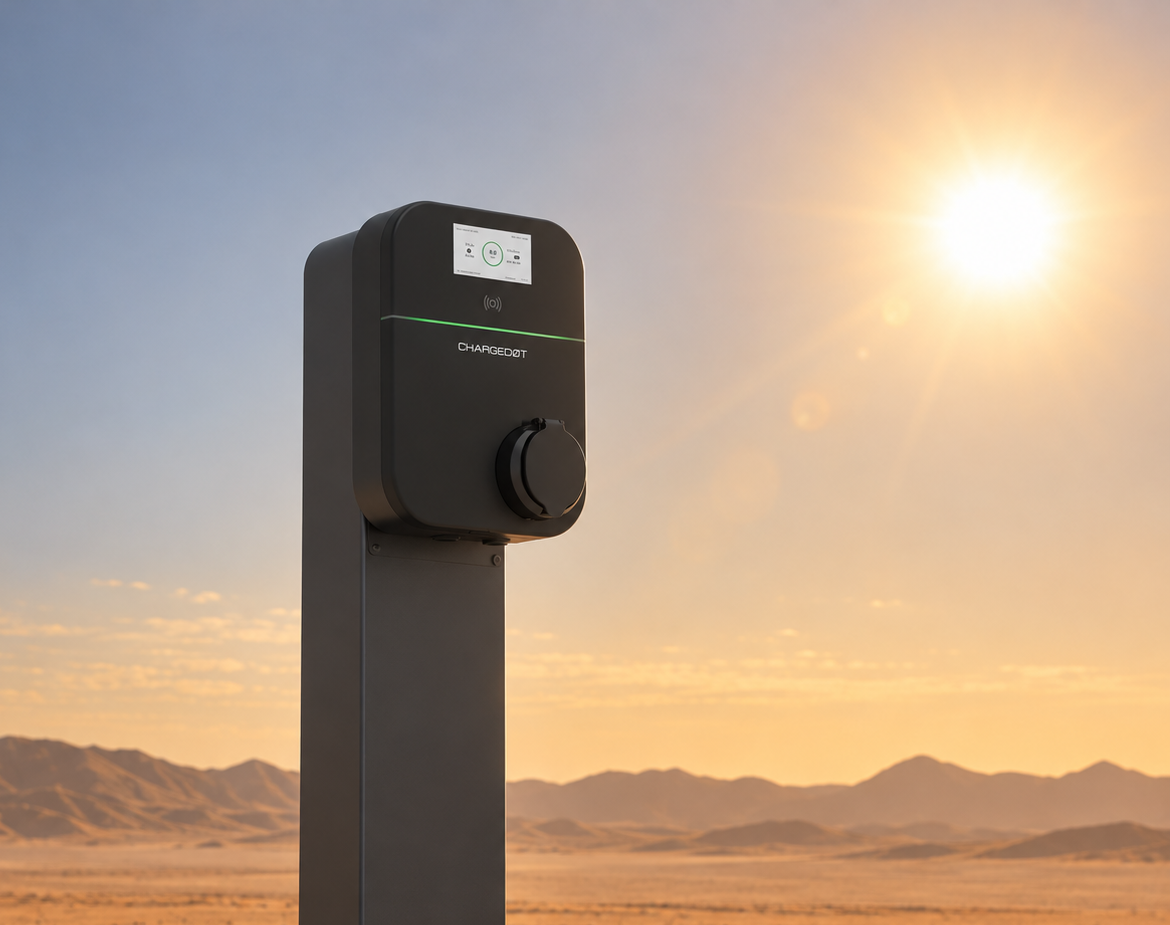

Built for Harsh Environments.
Rated IP55 and IK10, the housing is engineered to withstand the toughest conditions - from -30°C to +50°C.
The fire-resistant enclosure integrates built-in RCD protection, surge protection and ground fault monitoring, delivering reliable and safe operation wherever it is installed.
- Rated Power
- 7kW (1-phase) / 22kW (3-phase)
- Output Current
- 32A per phase
- Connector
- Type 2, socket or fixed charging cable
- IP/IK Rating
- IP54 (socket) / IP55 (cable), IK10
- Operating Temperature
- −30...+50 °C
- Dimensions (H × W × D)
- 361mm × 259mm × 112mm
